Spare Parts Holland - Hydraulic Top Link Cat 1-1 with Locking Block - Min. 20-7/8" Max. 31-7/8"

Transform your tractor's capabilities with the Spare Parts Holland Hydraulic Top Link Cat 1-1. This professional-grade hydraulic top link is engineered for precision control and reliable performance in demanding agricultural applications. Featuring an integrated locking block system, this top link maintains consistent positioning even under heavy loads.Superior Construction and PerformanceBuilt with high-grade steel and finished in protective black coating, this tractor hydraulic cylinder delivers exceptional durability. The hydraulic control valve system is designed for compatibility with standard tractor hydraulic setups, making it a versatile addition to your agricultural equipment.Technical Specifications:- Model Number: SPH320033- Maximum Hydraulic Pressure: 3625 PSI- Operating Hydraulic Pressure: 2610 PSI- Push Force: 7937 lbs | Pull Force: 5071 lbs at 2610 PSI- Working Length Range: 20-7/8" to 31-7/8"- Hydraulic Hoses: 3/8" Blue Flex SAE 100 R2AT- Quick Coupler Type: Connection 12-L bulkhead size 3- Hose Length: 29.5 inches

• Intelligent and Strong: Premium hydraulic top link with integrated locking block technology, maintains adjusted position consistently. Features sturdy steel construction with black protective finish. Hydraulic operating pressure of 2610 PSI with 7937 Lbs push force and 5071 Lbs thrust force.
• Complete Installation Kit: Includes 2x hydraulic hoses with male quick couplers (Blue Flex SAE 100 3/8), protective dust covers, and banjo bolts with sealing rings. Comprehensive fitting set ensures easy setup and maintenance.

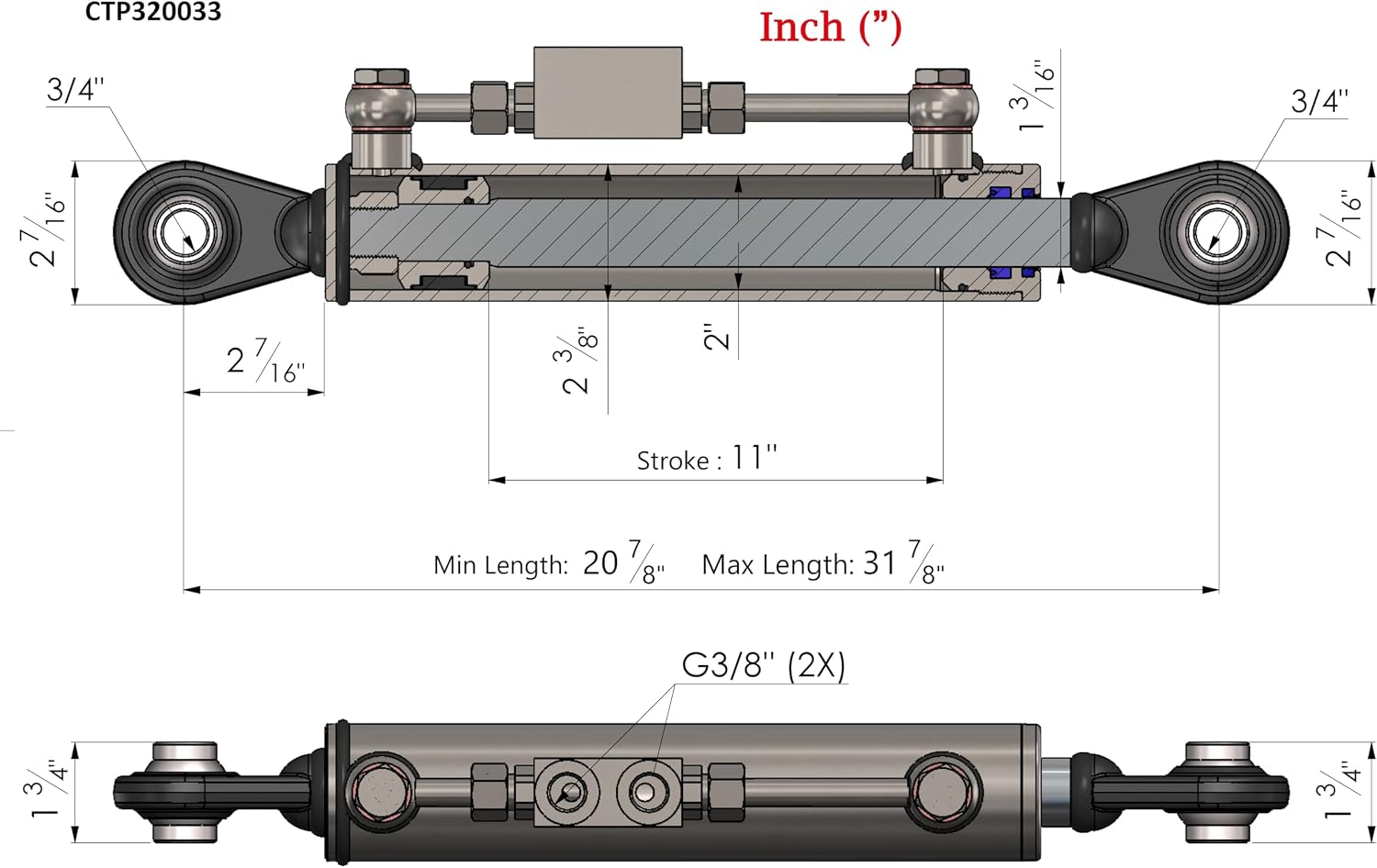

• Adjustable Design: Cat 1 top link system with rotatable piston rod for precise implement positioning. Working length ranges from 20-7/8 inches minimum to 31-7/8 inches maximum. Features extended stroke for optimal adjustment range.
• Advanced Locking Mechanism: Integrated check valve system securely locks cylinder position, requires active hydraulic pressure for adjustments. Ensures stable implementation positioning during operation and transport.
• Versatile Compatibility: Designed for tractor hydraulic systems with double-acting control valves. Features 3/4" pinholes on both ends and 1-3/4" ball width for secure mounting. Fully painted for lasting durability.
